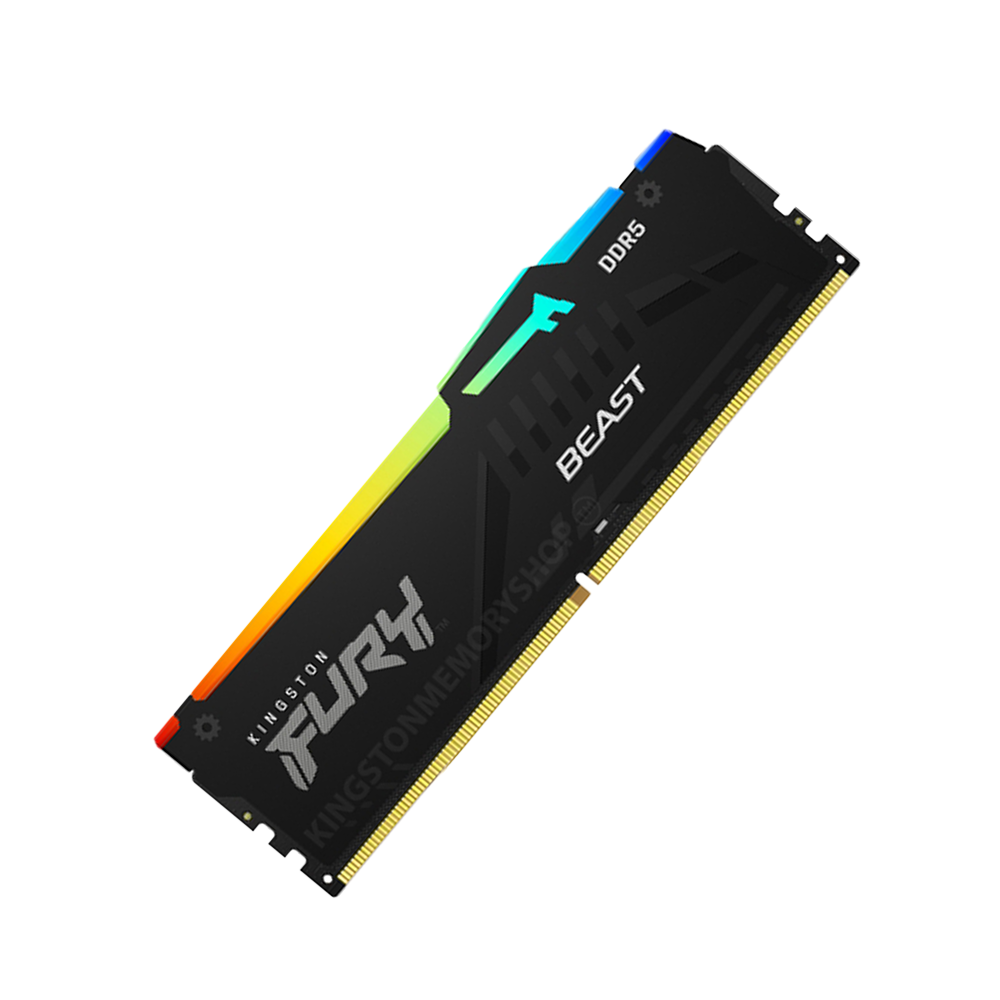

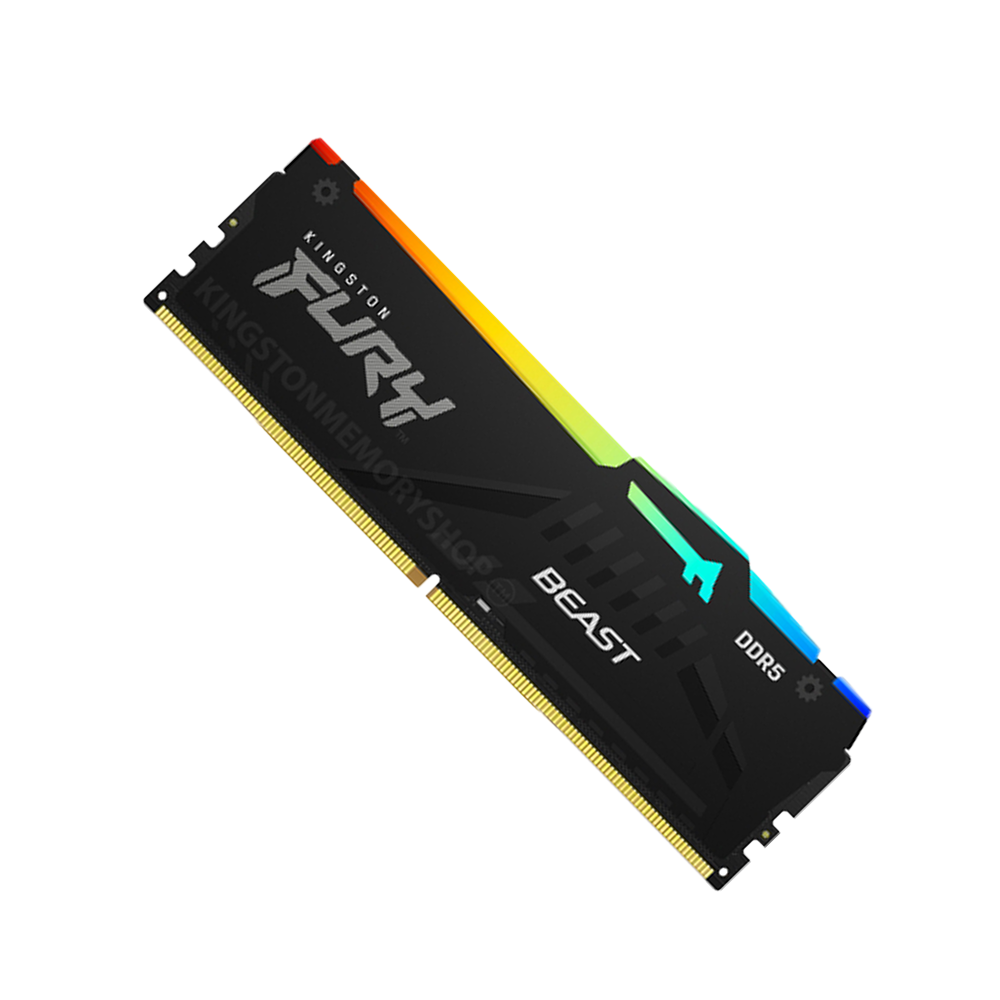

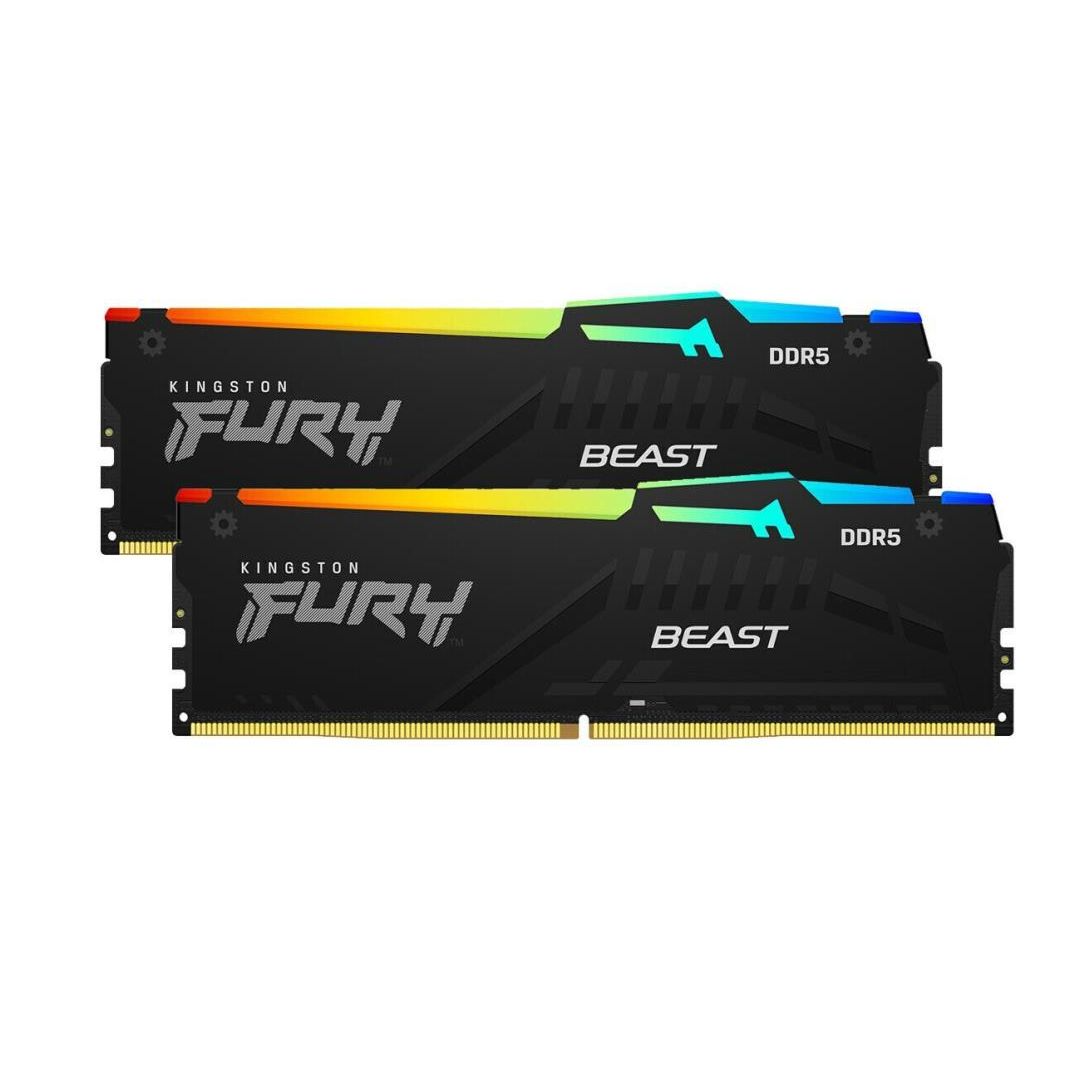

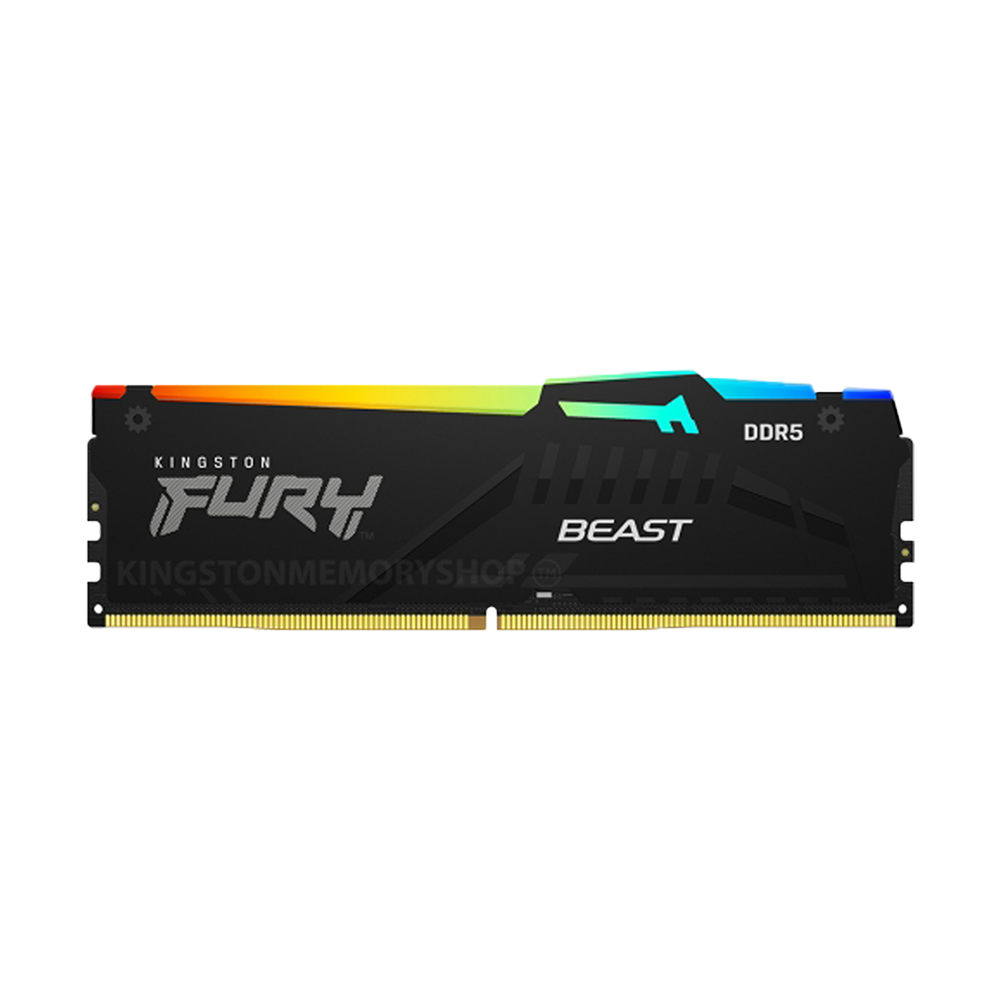

KINGSTON FURY BEAST RGB 16GB 6000MT/s DDR5 CL30 DIMM (Kit of 2) XMP – KF560C30BBAK2-16

LIMITED LIFETIME WARRANTY

⭐Pictures and specifications provided herein are for reference only. Actual Product outlook and specification might be different for each region.
⭐Netstore reserves the right to modify or revise the content at anytime without prior notice.
⭐All trademarks and logos are the properties of their respective holders.
⭐ALL ITEMS ARE BRAND NEW & SEALED WITH WARRANTY BY RESPECTIVE LOCAL AUTHORISED DISTRIBUTOR WARRANTY

———————————————————
Product specification
———————————————————

DESCRIPTION
Kingston FURY KF560C30BBAK2-16 is a kit of two 1G x 64-bit
(8GB) DDR5-6000 CL30 SDRAM (Synchronous DRAM) 1Rx16,
memory module, based on four 1G x 16-bit FBGA components per
module. Each module kit supports Intel® Extreme Memory
Profiles (Intel® XMP) 3.0. Total kit capacity is 16GB. Each
module has been tested to run at DDR5-6000 at a low latency timing
of 30-36-36 at 1.4V. The SPDs are programmed to JEDEC
standard latency DDR5-4800 timing of 40-39-39 at 1.1V.
Each 288-pin DIMM uses gold contact fingers. The JEDEC
standard electrical and mechanical specifications are as
follows:

CL(IDD):40 cycles
Row Cycle Time (tRCmin):48ns(min.)
Refresh to Active/Refresh:295ns(min.)
Command Time (tRFCmin)
Row Active Time (tRASmin):32ns(min.)
UL Rating:94 V – 0
Operating Temperature:0 o C to +85o C
Storage Temperature:-55 o C to +100 o C

DEFAULT FEATURES
Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.66” (42.23mm), w/heatsink

Kits of 2: 16GB
Speeds : 6000MT/s
Latencies: CL30,
Voltage : 1.25V
Operating Temperature 0 °C to 85 °C
Dimensions : 133.35 mm x 42.23 mm x 7.11 mm
