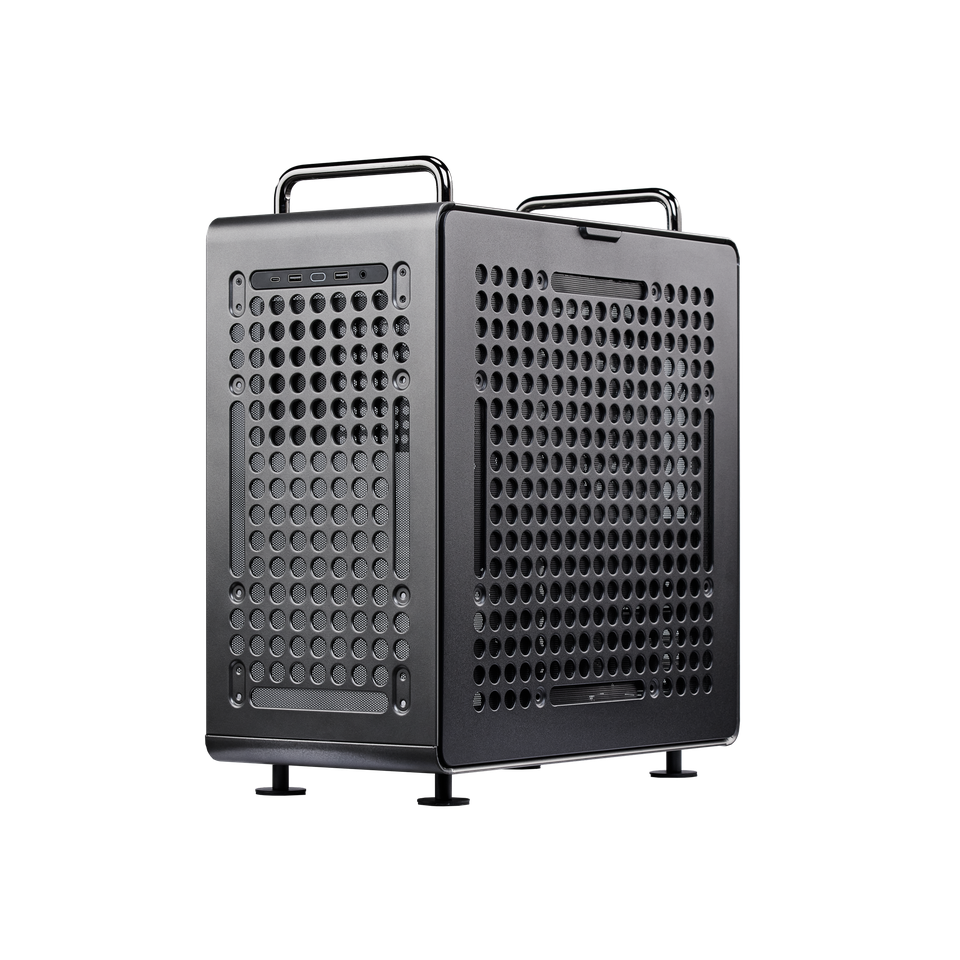

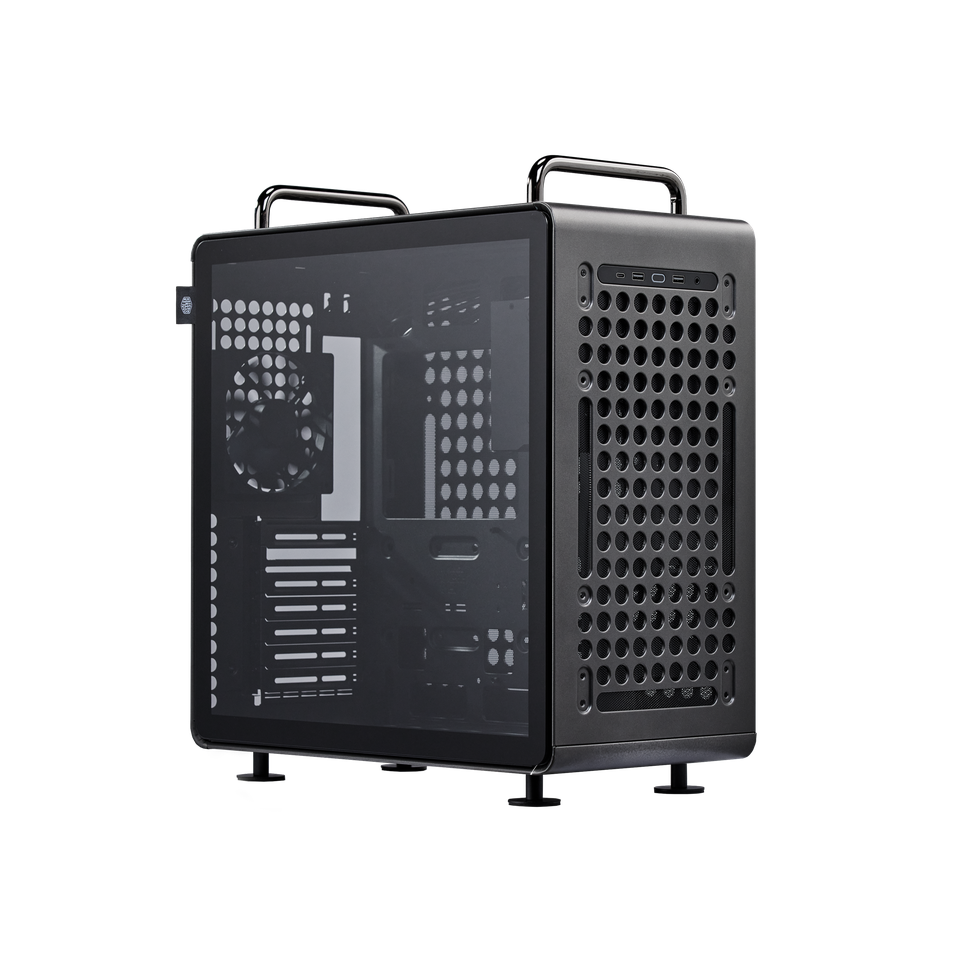

COOLER MASTER QUBE 540 TEMPERED GLASS CASING (STARDUST IRON) – Q540-MGNN-S00

2 YEARS WARRANTY

⭐Pictures and specifications provided herein are for reference only. Actual Product outlook and specification might be different for each region.
⭐Netstore reserves the right to modify or revise the content at anytime without prior notice.
⭐All trademarks and logos are the properties of their respective holders.
⭐ALL ITEMS ARE BRAND NEW & SEALED WITH WARRANTY BY RESPECTIVE LOCAL AUTHORISED DISTRIBUTOR WARRANTY

—————————————————————————————————
Product specification
—————————————————————————————————

Product Name : QUBE 540
Model Number : Stardust Iron: Q540-MGNN-S00
Model Number : Moonstone: Q540-LGNN-S00

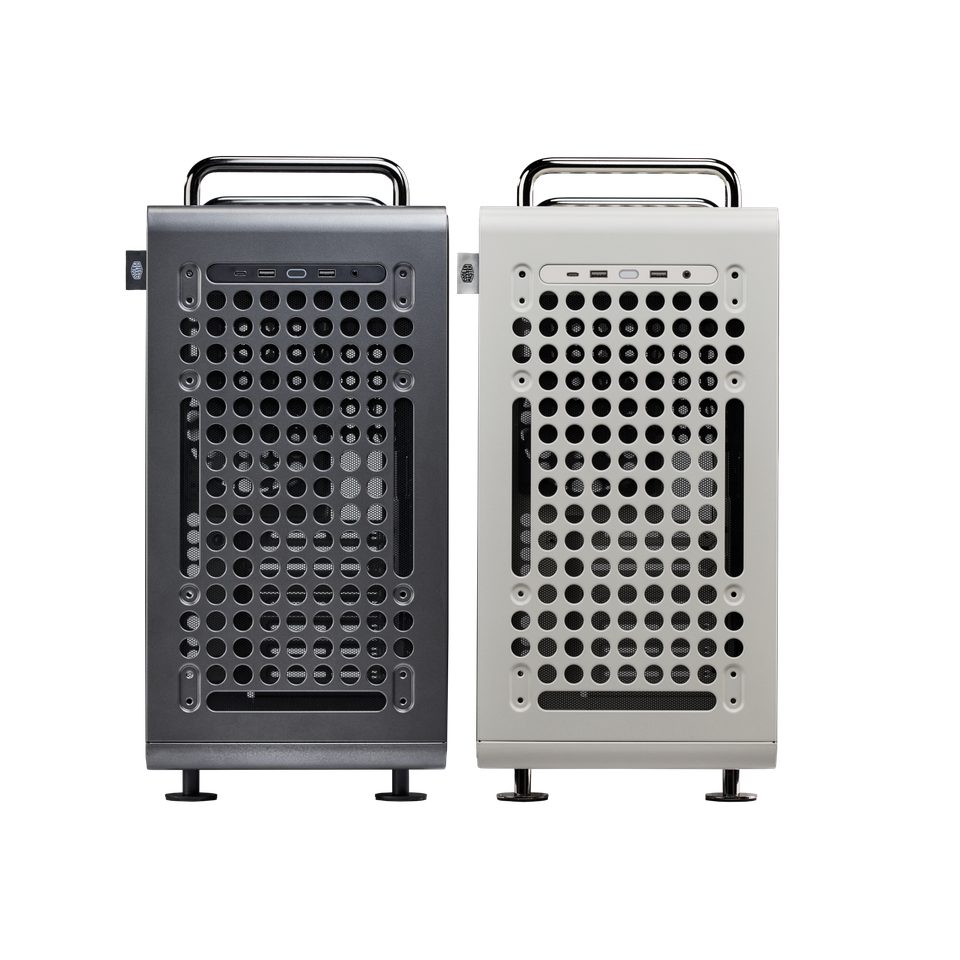

Color(s) : Stardust Iron / Moonstone
Materials – Exterior : Steel
Material – Side Panel (Right) : Steel
Material – Side Panel (Left) : TG
Dimensions (L x W x H) : Incl. Protrusions: 438.5 x 225 x 492.1 mm
Dimensions (L x W x H) : Excl. Protrusions: 425 x 225 x 425 mm
Volume (w/o protrusions) : 40.64 L
Volume (with panel, protrusions and feet) : 48.55 L
Motherboard Support : ITX / M-ATX / ATX / *E-ATX (*Up to 280 mm)
Expansion Slots : 7
Drive Bays – 5.25″ ODD : N/A
Drive Bays – 3.5″ HDD : 1 (Shared 3.5″ and 2.5″ mounting on PSU bracket)
Drive Bays – 2.5″ SSD : 2 (Max. 5)
I/O Panel – USB Ports : 2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C
I/O Panel – Audio In / Out : 1 x 3.5 Mic / Audio Combo Jack
Fan Support – Front : 3 x 120 mm (w/o I/O panel) / 2 x 140 mm
Fan Support – Top : 3 x 120 mm (w/o I/O panel) / 2 x 140 mm
Fan Support – Rear : 1x 120mm
Fan Support – Bottom : 3 x 120 mm / 2 x 140 mm
Preinstalled Fan(s) – Front : N/A
Preinstalled Fan(s) – Top : N/A
Pre-installed Fans – Rear : 1x 120mm Black Fan
Radiator Support – Front : 140 / 280 / 360 mm (w/o I/O panel)
Radiator Support – Top : 140 / 280 / 360 mm (w/o I/O panel)
Radiator Support – Rear : 120 mm
Radiator Support – Bottom : 140 / 280 / 360mm (w/o I/O panel)
Clearances – CPU Cooler : 172 mm
Clearances – Power Supply : 200 mm
Clearances – Graphics Card : 415 mm (w/o Front Fan)
Cable Routing – Behind Motherboard Tray : 27 mm
Dust Filters Top / Bottom / Front
Power Supply Support : ATX / SFX
Warranty : 2 years
Note : –
Series : QUBE Series
Size : Mid Tower
