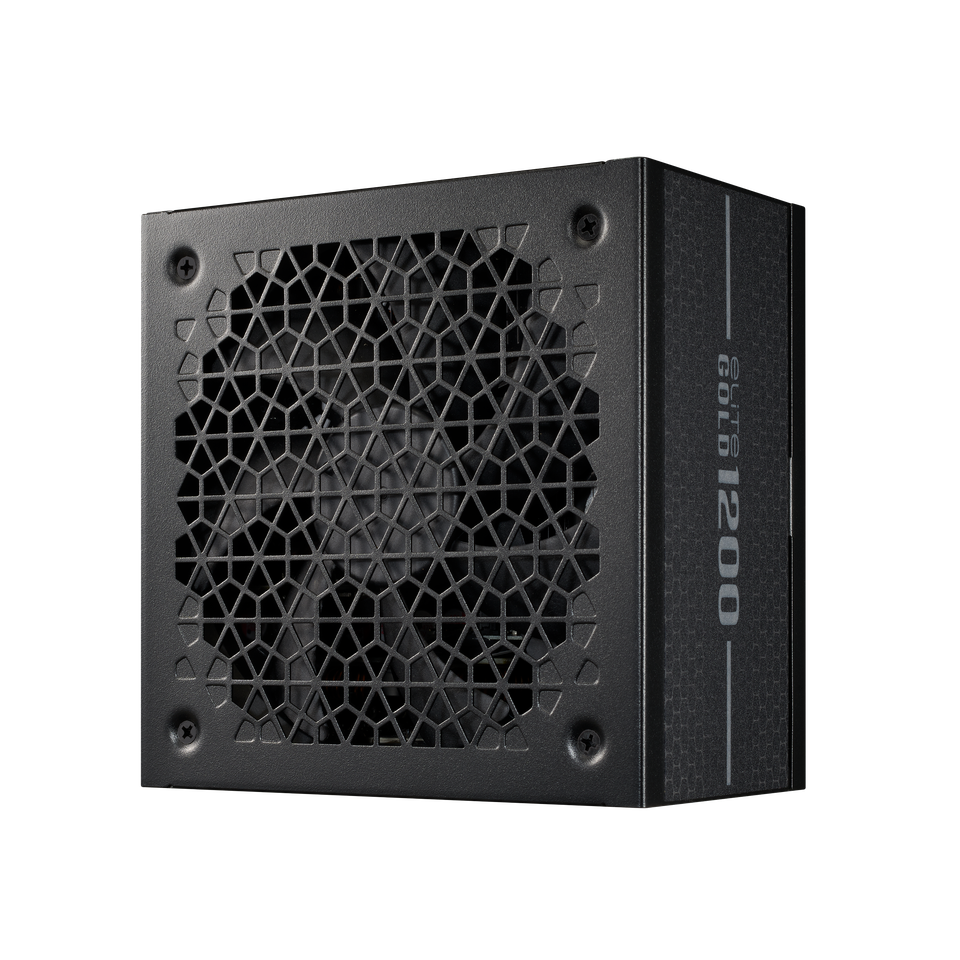

COOLER MASTER ELITE GOLD 1200 FULL MODULAR POWER SUPPLY – MPW-C001-AFAG-BUK

10 YEARS WARRANTY

⭐Pictures and specifications provided herein are for reference only. Actual Product outlook and specification might be different for each region.
⭐Netstore reserves the right to modify or revise the content at anytime without prior notice.
⭐All trademarks and logos are the properties of their respective holders.
⭐ALL ITEMS ARE BRAND NEW & SEALED WITH WARRANTY BY RESPECTIVE LOCAL AUTHORISED DISTRIBUTOR WARRANTY

—————————————————————————————————
Product specification
—————————————————————————————————

Product Name : ELITE GOLD 1200

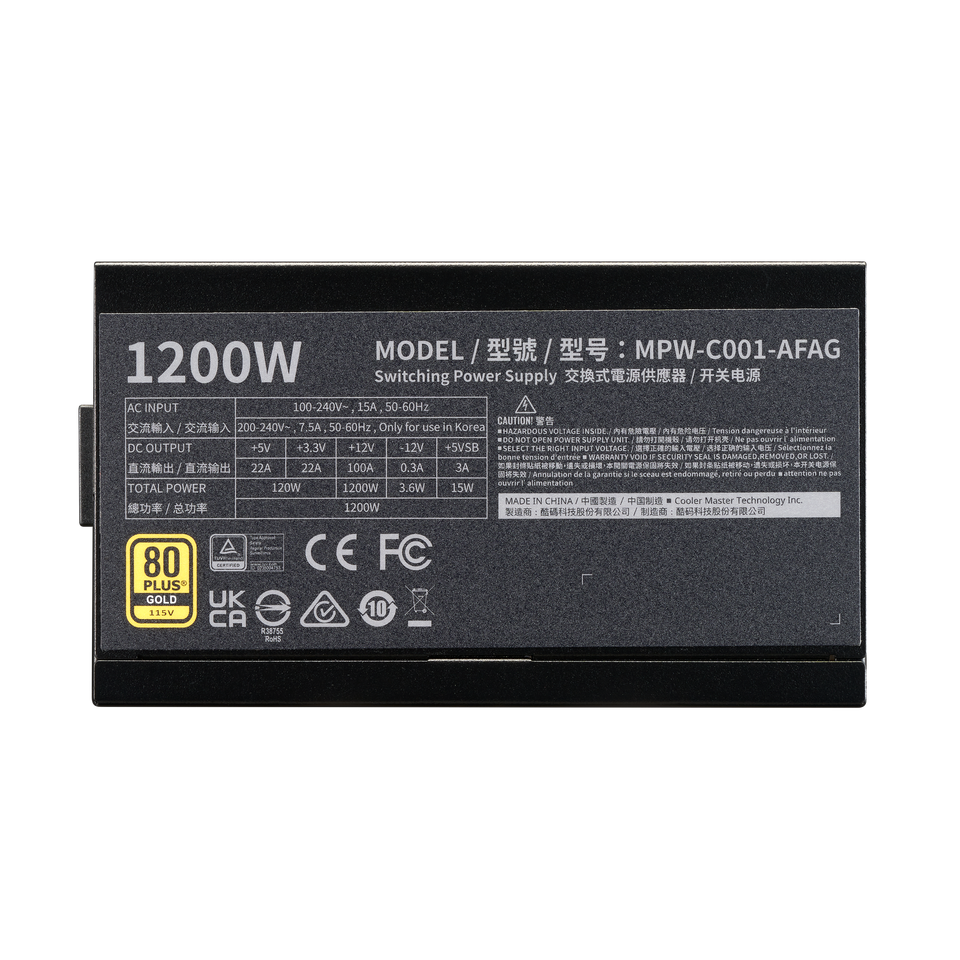

Model : MPW-C001-AFAG
ATX Version : ATX 12V Ver. 3.1
PFC : Active PFC
Input Voltage : 100-240V
Input Current : 7.5 ~ 15A
Input Frequency : 50-60Hz
Dimensions (L x W x H) : 150 x 150 x 86 mm
Fan Size : 135mm
Fan Bearing : FDB
Efficiency : ≥90% @ Typical Load
80 PLUS Rating : 80 PLUS Gold
ErP 2014 Lot 3 : Yes
Operating Temperature : 0-40°C
Power Good Signal : 100 – 150 ms
Hold Up Time : ≥16ms at 80% Load
MTBF : >100,000 hours​ @ 25℃ ambient
Protections : UVP / OVP / OPP / OTP / SCP
Regulatory : cTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0 , REACH

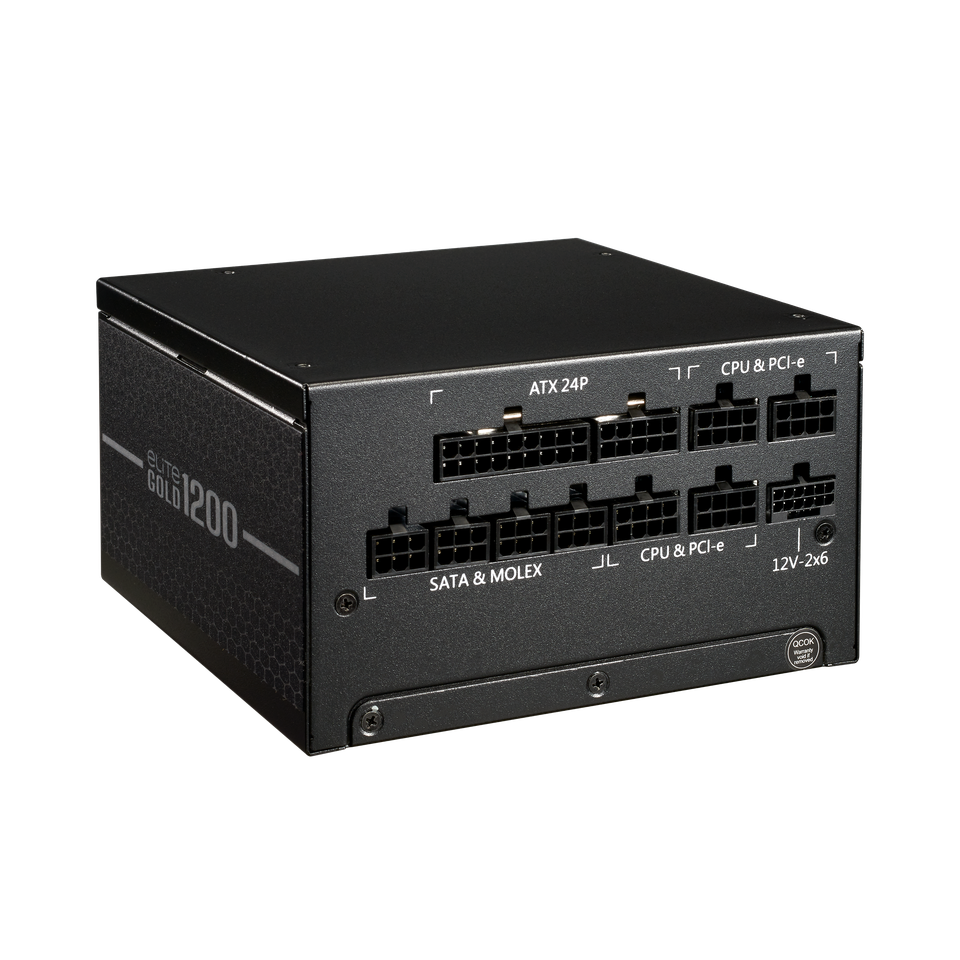

ATX 24 Pin Connectors : x1 = 1 (600mm)
EPS 4+4 Pin Connectors : x2 = 2 (700mm)
SATA Connectors : x9 = 3 (500+100+100mm)
Peripheral 4 Pin Connectors : x3 = 1 (500+100+100mm)
PCI-e 6+2 Pin Connectors : x6 = 3 (550+120mm)
12+4 Pin Connectors : x1 = 1 (600mm)
Series : Elite Series
Form Factor : ATX
Watts : 1200W
Modular : Fully Modular
80 Plus Efficiency : Gold
Warranty : 10 Years
