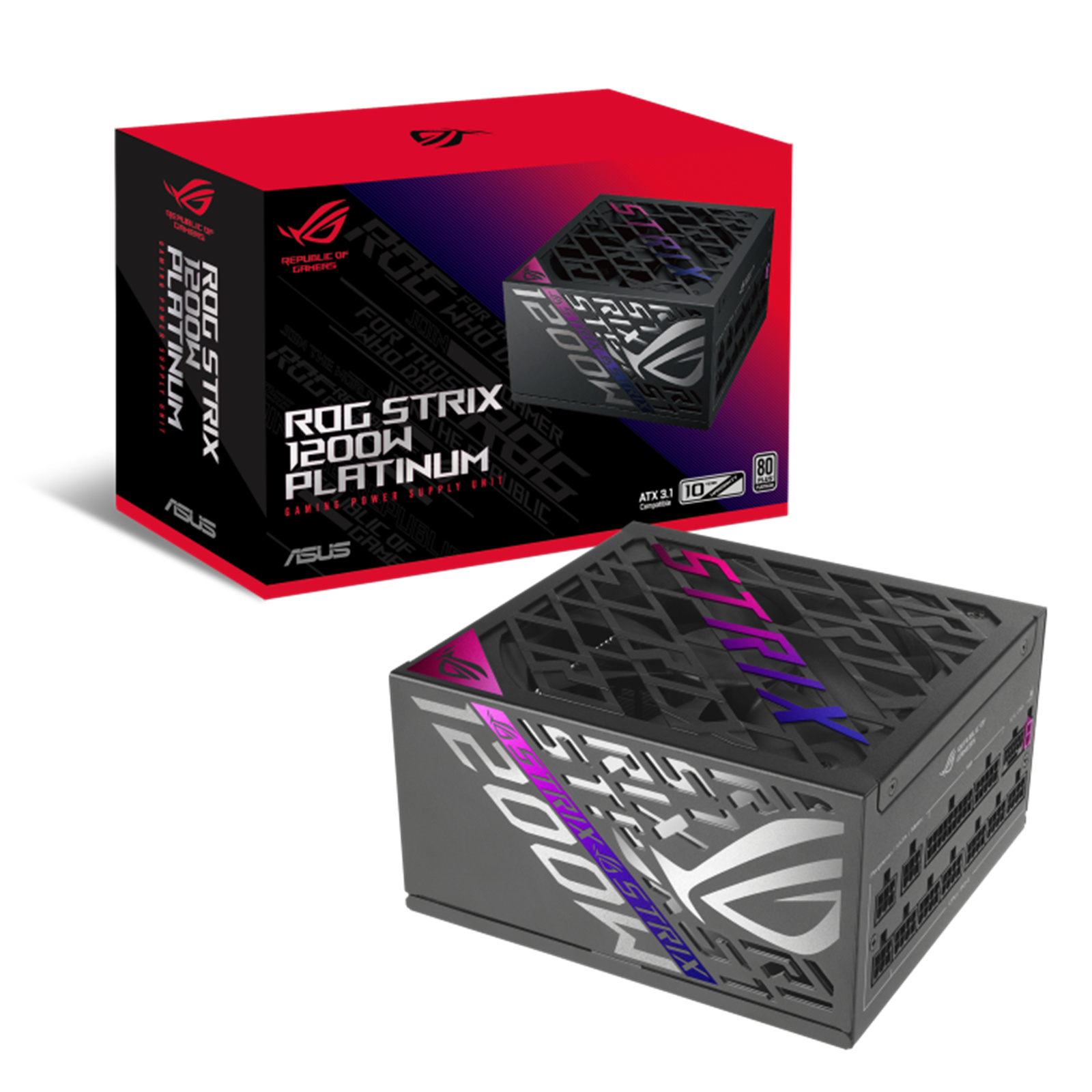

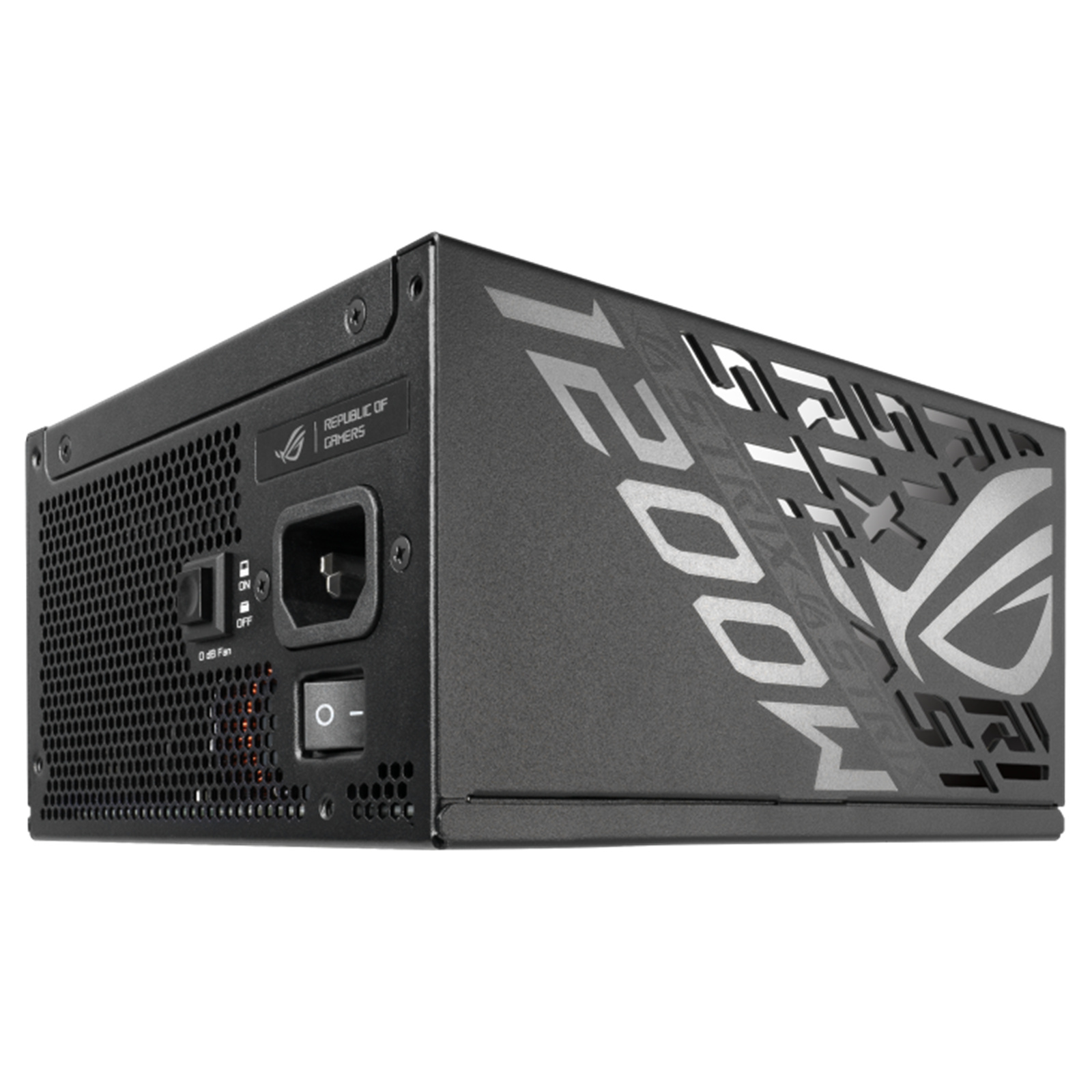

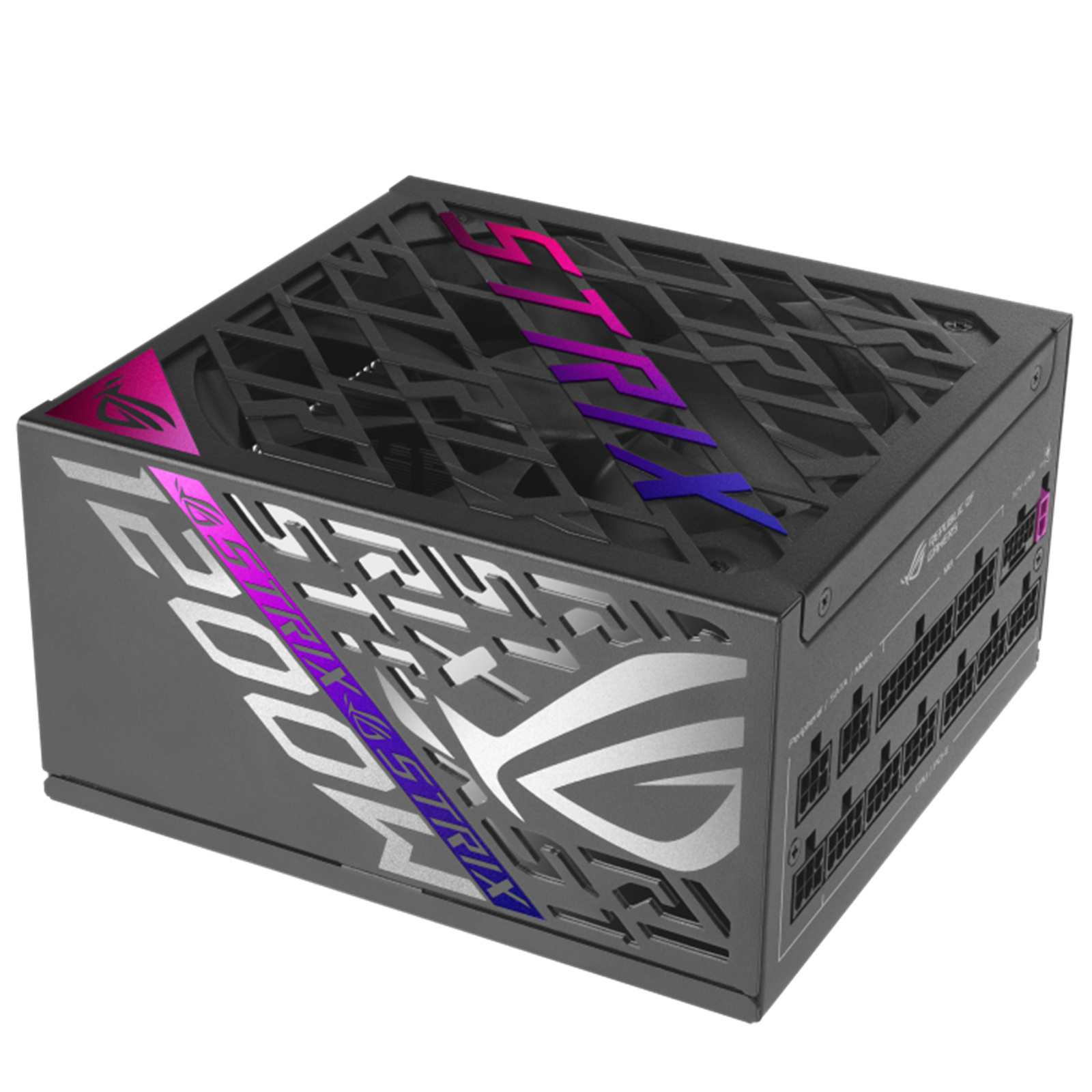

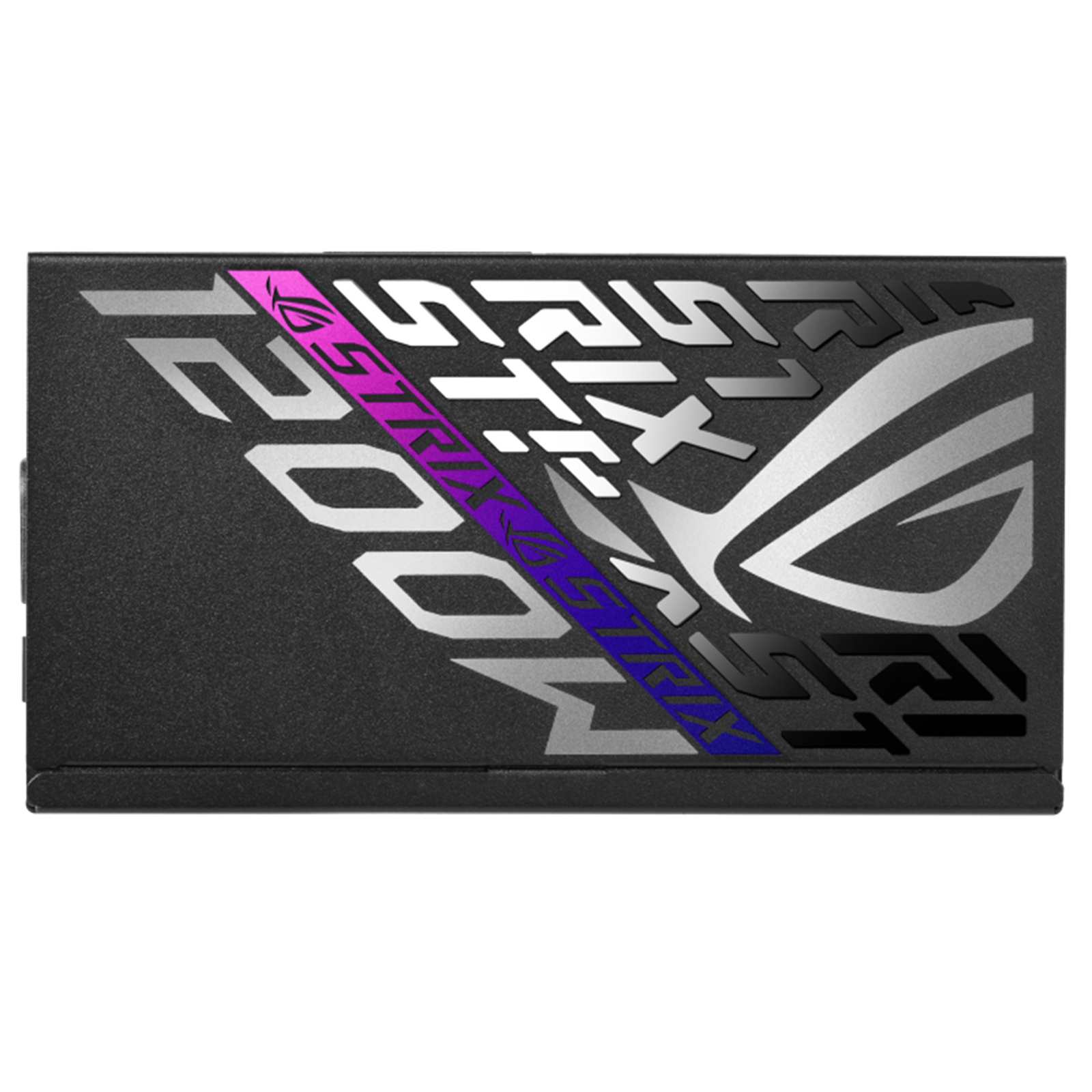

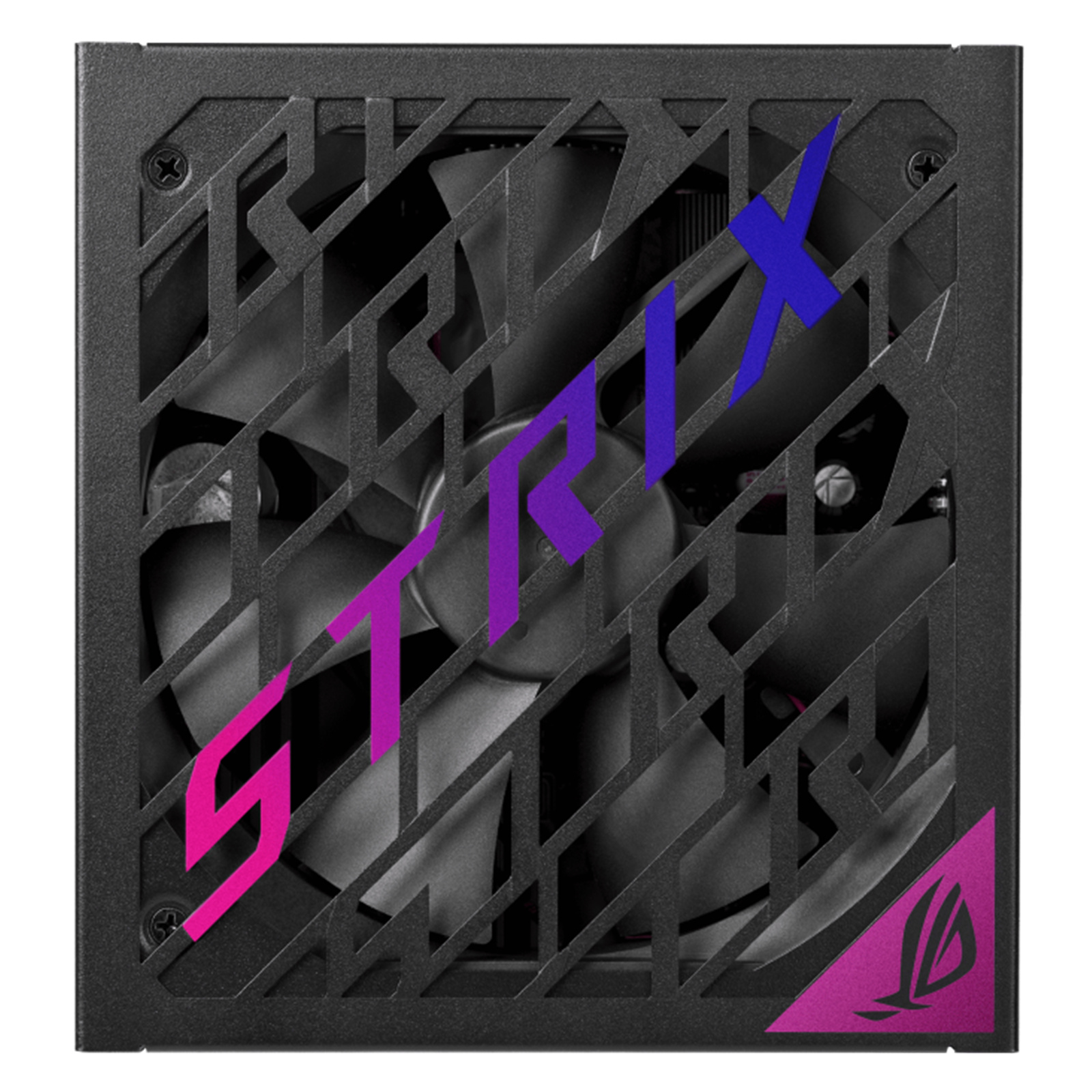

ASUS ROG STRIX 1200P 1200W 80+ Platinum ATX 3.1, PCIE GEN 5 Power Supply – 90YE00W0-B0NA00

10 YEARS WARRANTY

⭐Pictures and specifications provided herein are for reference only. Actual Product outlook and specification might be different for each region.
⭐Netstore reserves the right to modify or revise the content at anytime without prior notice.
⭐All trademarks and logos are the properties of their respective holders.
⭐ALL ITEMS ARE BRAND NEW & SEALED WITH WARRANTY BY RESPECTIVE LOCAL AUTHORISED DISTRIBUTOR WARRANTY

—————————————————————–
Product specification
—————————————————————–

Model
ROG STRIX 1200W Platinum
Intel Form Factor
ATX12V
PFC Type
Active PFC
ATX Standard
ATX 3.1
Dimensions
160 x 150 x 86 mm
Efficiency
80Plus Platinum
MTBF
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
25A 25A 100A 0.3A 3A
Combined Load
130W 130W 1200W 3.6W 15W
Total Output
1200W

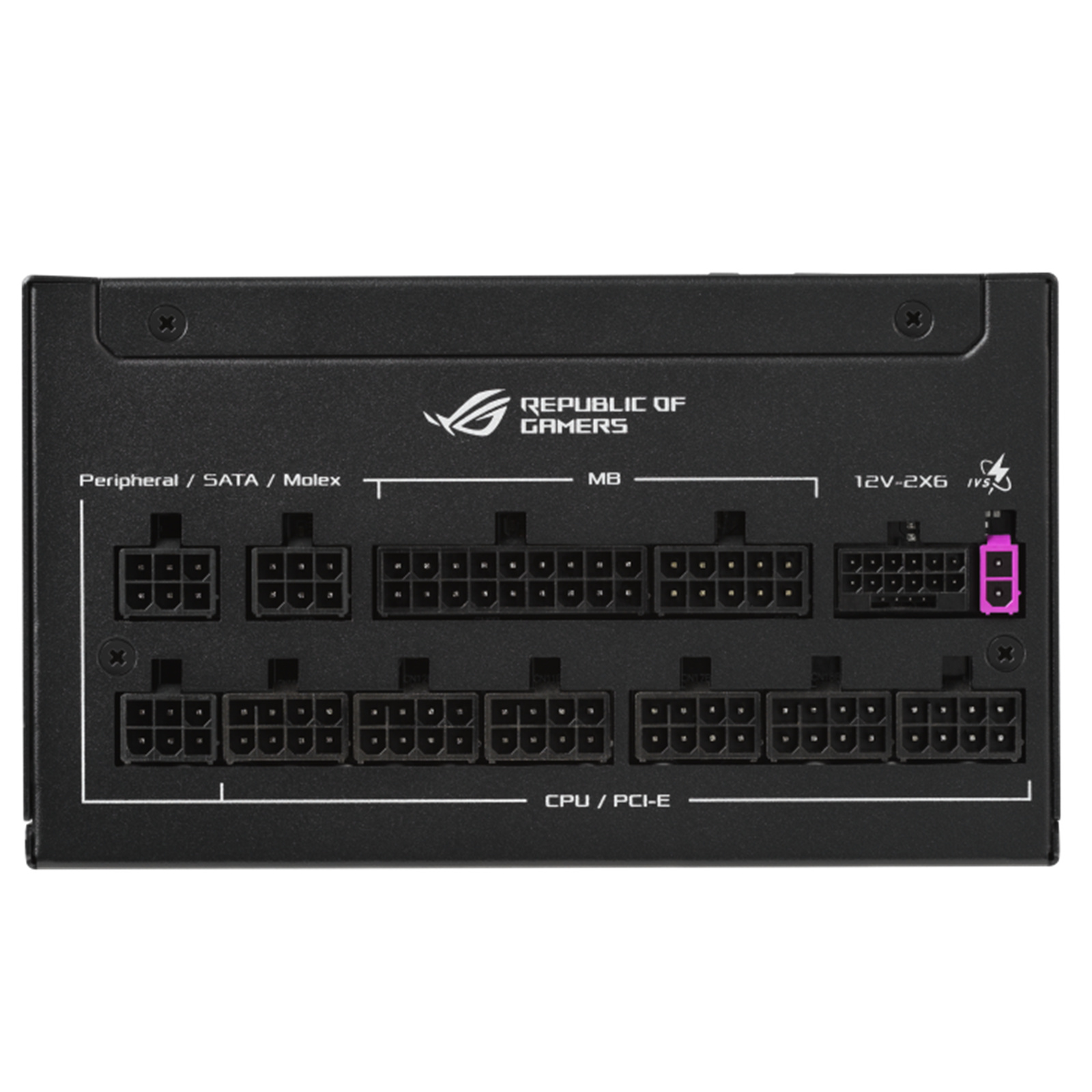

Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 6+2-pin x 4
SATA x 6
PERIPHERAL x 3
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
PCI-E Gen 5 (16-pin-to-16-pin) Cable x 1 (750mm)
PCI-E (8-pin-to-6+2pin) Cable x 4 (750mm)
SATA 1-to-3 Cable x 2 (400+120+120mm)
Peripheral 1-to-3 Cabel x 1 (400+150+150mm)
ROG Strix DIY sticker x 1
User Manual x 1
Weight
2.94 kg (single PSU)
Cybenetics Noise Level Certification
TBD
0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load

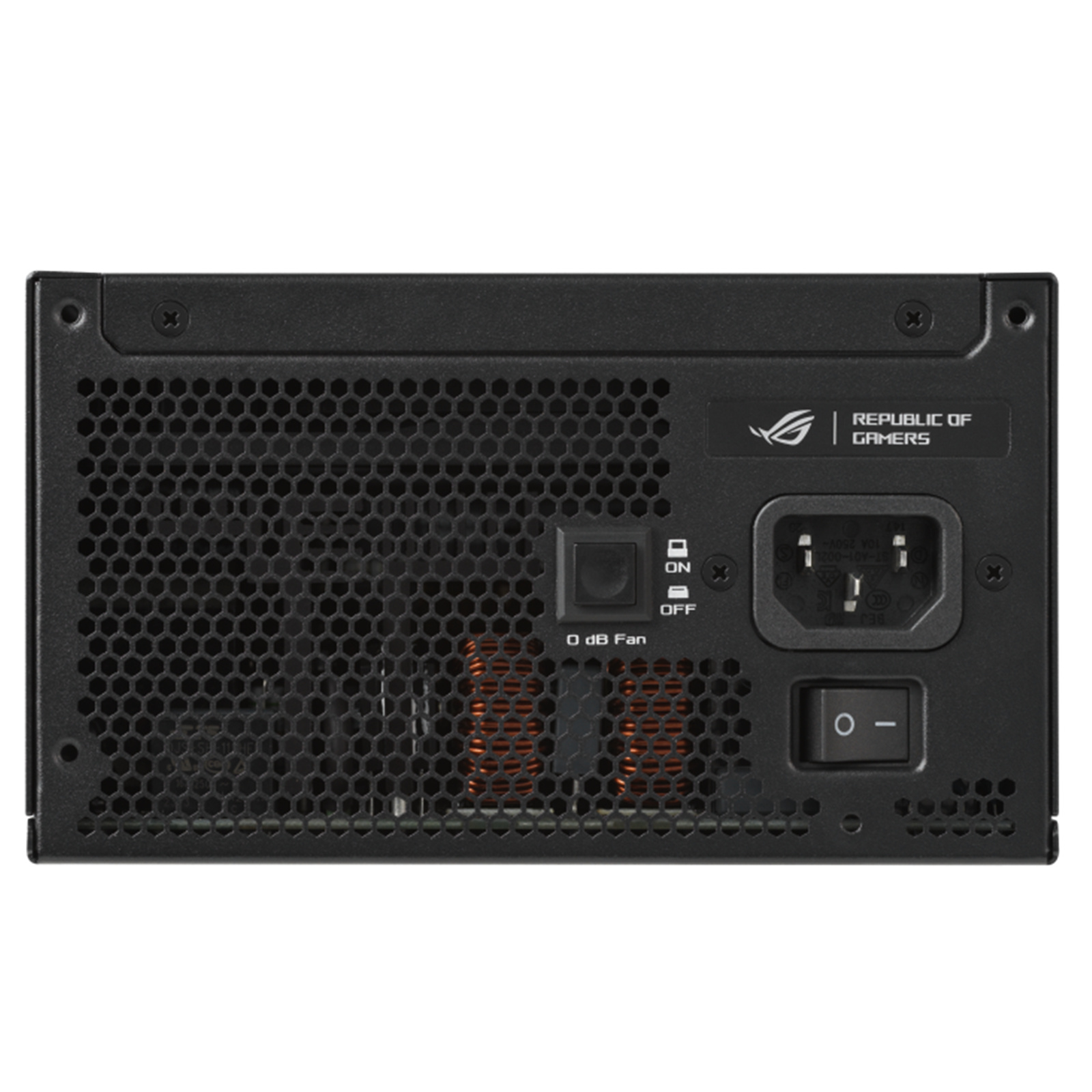

0dB Fan Button
Yes. When the Button is ON, the fan will only spin up when the system reaches a cer
